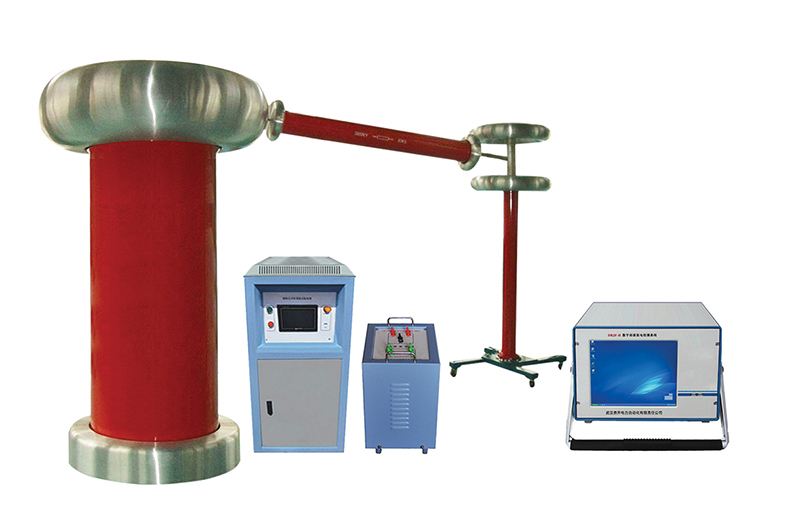

YWDT-10/120 Partial Discharge Free High Voltage Test Transformer
Product Description
YWDT-10/120 Partial Discharge Free High Voltage Test Transformer Main Technical Performance
1. The test transformer can operate continuously for 1 hour at rated voltage UN. It can operate continuously at 70% of rated capacity;
2. The short-time power frequency withstand voltage in factory test is 1.1UN;
3. The partial discharge level of the test transformer at rated voltage is ≤5pC.
YWDT-10/120 Specifications and Technical Parameters
The main specifications of test transformers produced by our factory are shown in Table 1. According to different user requirements, the overall dimensions may vary,
The dimensions in the table are for reference only.
Serial No. |
|
|
|
|
|
1 | YWDT-5/50 | 50 | 5 | 450×680 | 101 |
2 | YWDT-10/100 | 100 | 10 | 630×780 | 105 |
3 | YWDT-50/100 | 100 | 50 | 840×960 | 400 |
4 | YWDT-10/120 | 120 | 10 | 630×860 | 230 |
5 | YWDT-15/150 | 150 | 15 | 700×1200 | 385 |
6 | YWDT-30/150 | 150 | 30 | 920×1650 | 680 |
7 | YWDT-150/150 | 150 | 150 | 1500×1760 | 1200 |
